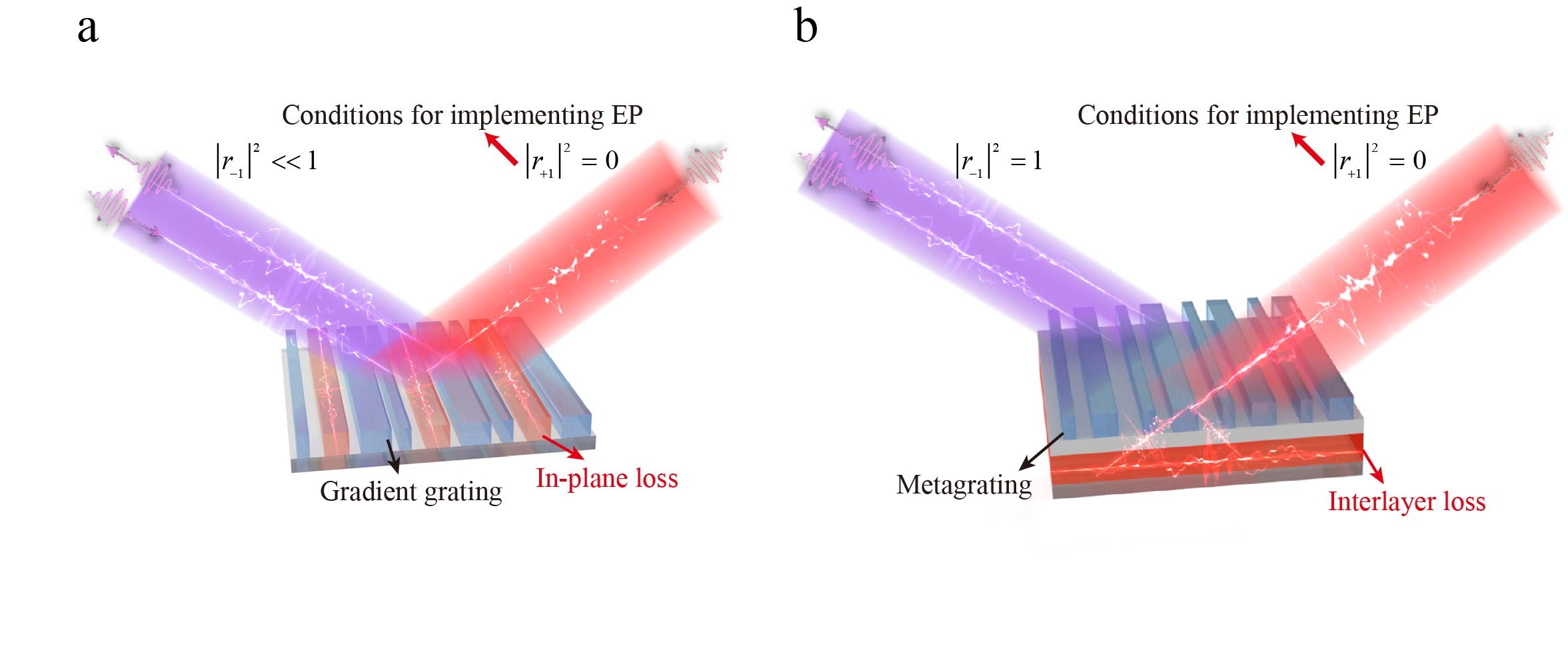

a, The physical model and principle of the optical non-Hermitian metasurfaces operating at an EP based on the in-plane loss. b, The physical model and principle of the optical non-Hermitian metasurfaces operating at an EP based on the interlayer loss.
CHINA, November 1, 2023 /EINPresswire.com/ — High-efficiency scattering exceptional point (EP) at non-Hermitian metasurface has numerous alluring optical properties but still is unexplored in the visible. Scientists in China and Singapore reported a universal paradigm for achieving a high-efficiency EP in the visible by leveraging interlayer loss to accurately control the interplay between the lossy structure and scattering lightwaves. This work paves a new avenue toward the design of versatile optical metasurface platforms involving the EP or higher-order EP.
Non-Hermitian systems have numerous alluring optical properties at EPs and have attracted extensive attention because of their great prospects in applications such as optical sensing, integrated optics, and other fields. Recently, metasurface, a class of artificial materials that transcends natural materials through the orderly design of subwavelength structures, has become a new platform to realize complex optical EPs. A common way to implement scattering EP in the acoustic/microwave range is regulating the loss of the gradient metasurfaces by introducing a specific loss in a unit cell (Fig. 1a). However, direct extensions of in-plane loss in a gradient metasurface from non-visible waveband to visible light remain a formidable challenge, since the adjustable in-plane loss and corresponding manufacturing process in the visible are lacking. Further, the complex and rebellious interplay between in-plane lossy structure and lightwave restricts optical efficiency. Therefore, achieving high-efficiency EP at optical non-Hermitian metasurface is still a challenging task in photonics. Notably, two-dimensional scattering systems operating at EPs in the visible are unexplored.
In a new paper published in Light Science & Application, a team of scientists, led by Professor Cheng-Wei Qiu from Department of Electrical and Computer Engineering, National University of Singapore, Singapore and Xinbin Cheng from Institute of Precision Optical Engineering, School of Physics Science and Engineering, Tongji University, Shanghai, and co-workers have reported a universal paradigm for achieving a high-efficiency EP in the visible by leveraging interlayer loss to accurately control the interplay between the lossy structure and scattering lightwaves (Fig. 1b). A bilayer framework is demonstrated to reflect back the incident light from the left side (|r-1| > 0.999) and absorb the incident light from the right side (|r+1| < 10-4).

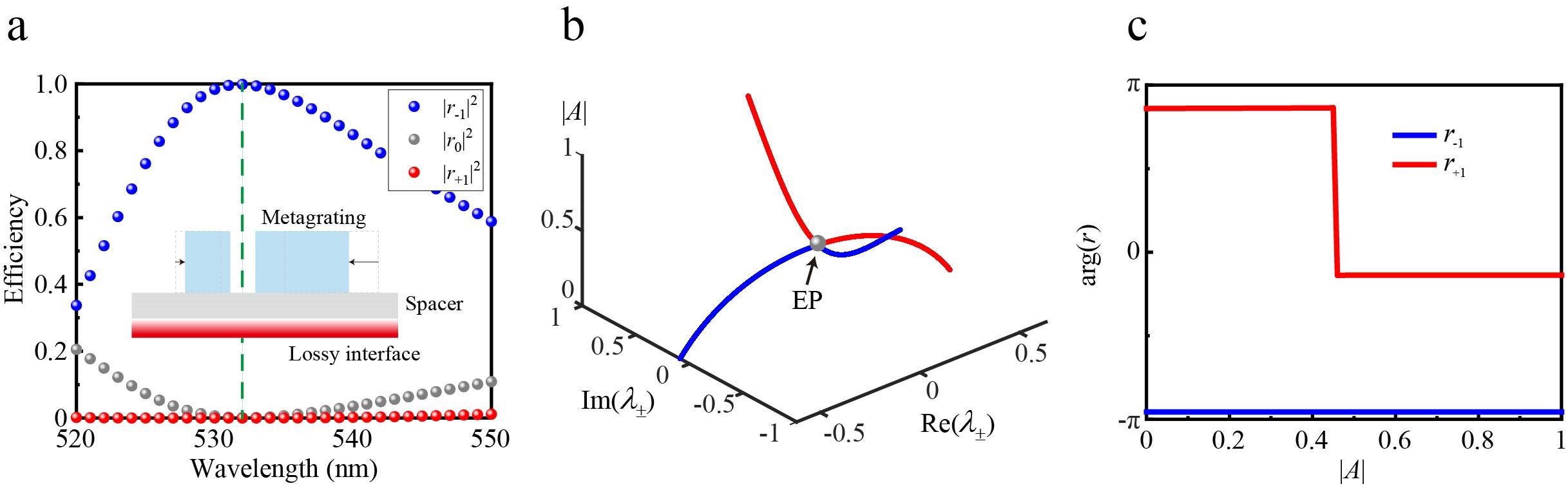

“As a proof of concept, a bilayer metasurface composed of TiO2 metagrating and Si subwavelength grating is designed: the metagrating in the upper layer achieves the directional regulation of lightwave, and the lossy subwavelength grating in the lower layer achieves an adjustable absorption. When the proper absorption of Si subwavelength grating is selected, a wave vector-dependent perfect retroreflector and absorber is realized (Fig. 2a). The eigenvalues and phase change all proves that we have reached the EP (Fig. 2b and 2c).”

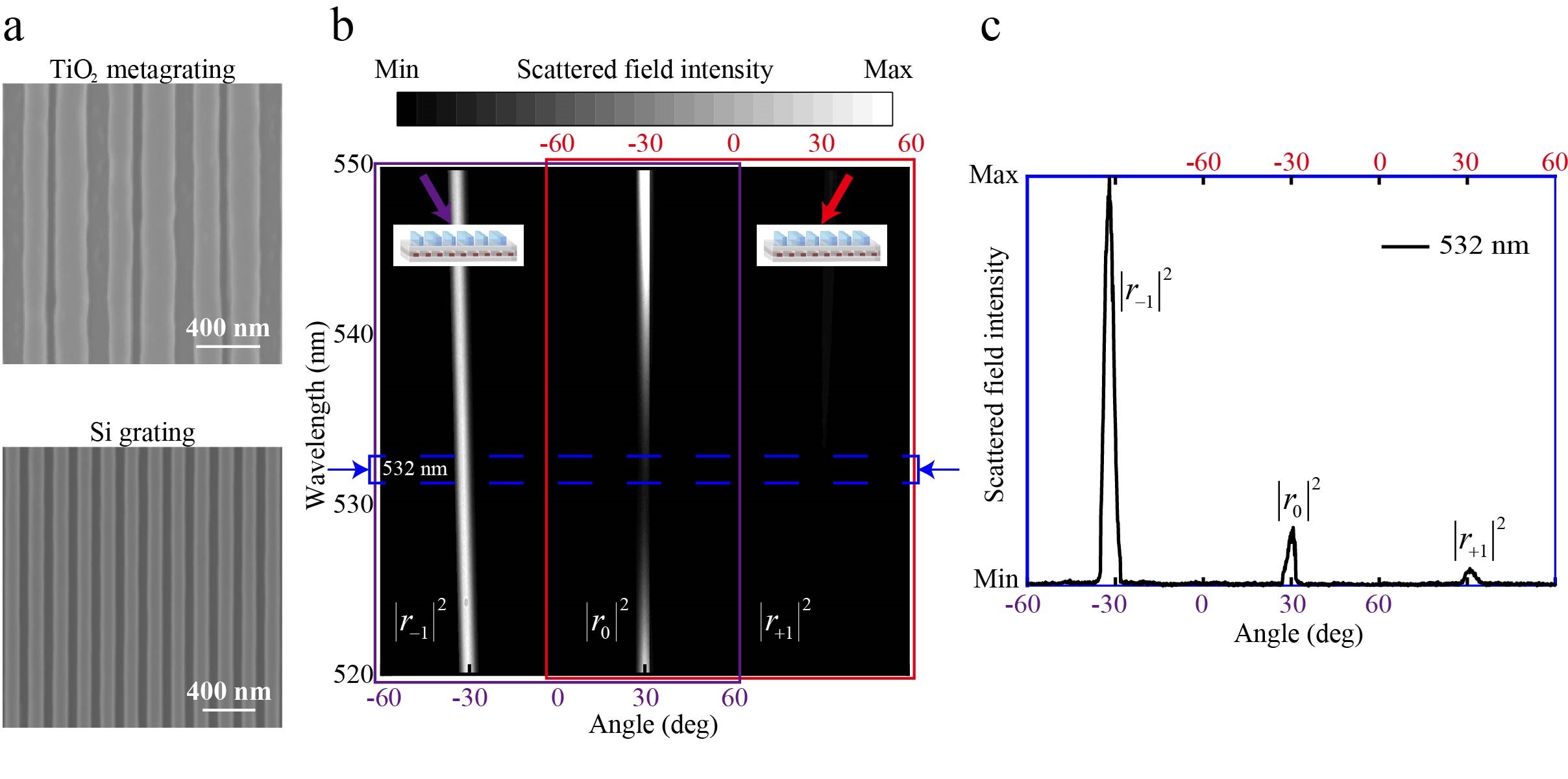

“We fabricated the sample (Fig. 3a) and conducted two separate tests with incident angles of 30° and −30° as shown in the purple and red boxes of Fig. 3b. When the incident light impacted from the left, most of the light was reflected by the sample to the incident path. When the incident light came from the right, there was very little retroreflection light. The fabricated sample is experimentally demonstrated to reflect and absorb incident light with efficiencies of 88% and 85%, respectively, at 532 nm. (Fig. 3c).”
“Our work paves a new avenue toward the design of versatile optical metasurface platforms involving the EP or higher-order EP, which may inspire more functional photonic devices for wave manipulation.” the scientists forecast.
Original Source URL
This work was supported by the National Natural Science Foundation of China (61925504, 62192770, 62305252, 61621001, 62205246, 62020106009, 6201101335, 62205249, 62192772, 62192771), Shanghai Pilot Program for Basic Research, Science and Technology Commission of Shanghai Municipality (17JC1400800, 20JC1414600, 21JC1406100), the “Shu Guang” project supported by Shanghai Municipal Education Commission and Shanghai Education (17SG22), Shanghai Municipal Science and Technology Major Project (2021SHZDZX0100), Special Development Funds for Major Projects of Shanghai Zhangjiang National Independent Innovation Demonstration Zone (Grant No. ZJ2021-ZD-008), The Fundamental Research Funds for the Central Universities, Project funded by China Postdoctoral Science Foundation (2022M712401).
